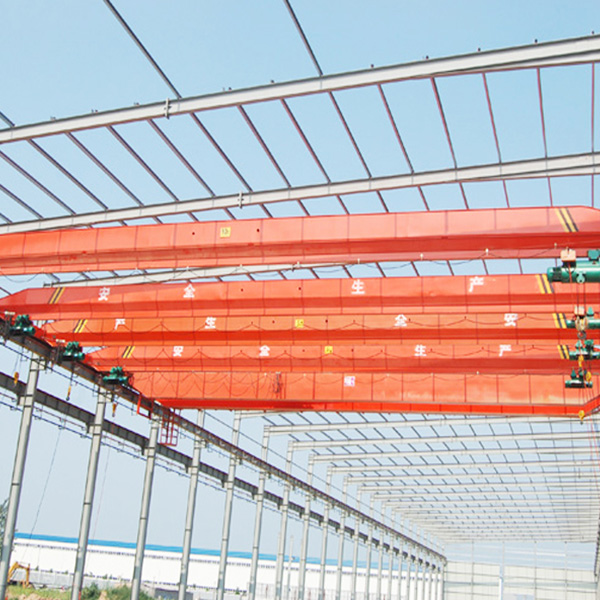

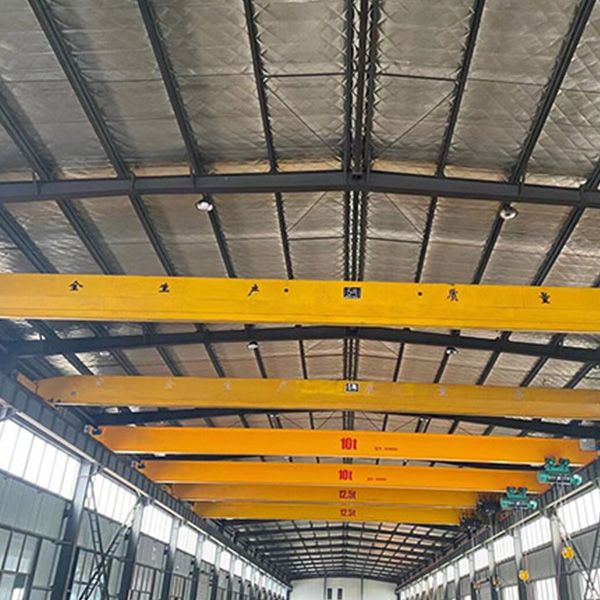

LD type electric single beam crane
LD type electric single beam crane, is used with CD1, MD1 and other forms of electric hoist, mainly by the main beam, beam device, running car, electric hoist, limit device and control system; It b...
Share With:
Description
Inquiry
Description:

LD type electric single beam crane, is used with CD1, MD1 and other forms of electric hoist, mainly by the main beam, beam device, running car, electric hoist, limit device and control system; It becomes a light and small single beam crane with track running; Its applicable lifting weight is 1-16t, the applicable span is 7.5-25.5 meters, and the working ambient temperature is in the range of -25 — +40℃.
For the convenience of users, there are two control forms of ground and control room, this product is a general purpose crane, mostly used in machinery manufacturing, assembly, warehouse and other places.

Product Characteristics
1. Configure emergency stop switch, short circuit protection, voltage loss protection, phase sequence protection and other functions;
2. Lifting, trolley, cart three independent control, can run alone or at the same time;
3. All connections are quick plug type heavy aviation plug and socket, sealed well, firmly inserted, easy to maintain;
4. The plug connection part is protected by plastic sleeve insulation;
5. The trolley limit device can adjust the position according to actual use;
6. The mobile power supply system adopts PVC flat cable dedicated to the crane, and the pressure rating reaches 450/750V;
7. The trolley mobile power supply system adopts built-in cable block, galvanized track and flat cable.
8. Overload limiter;
9. Upper and lower limit switch;

Applicable occasion
Indoor use; Outdoor use (add rain cover); The protection level of all motors is not less than IP55, and the protection level of electric control box is not less than IP54; It is mostly used for occasions with small weight and low frequency.
